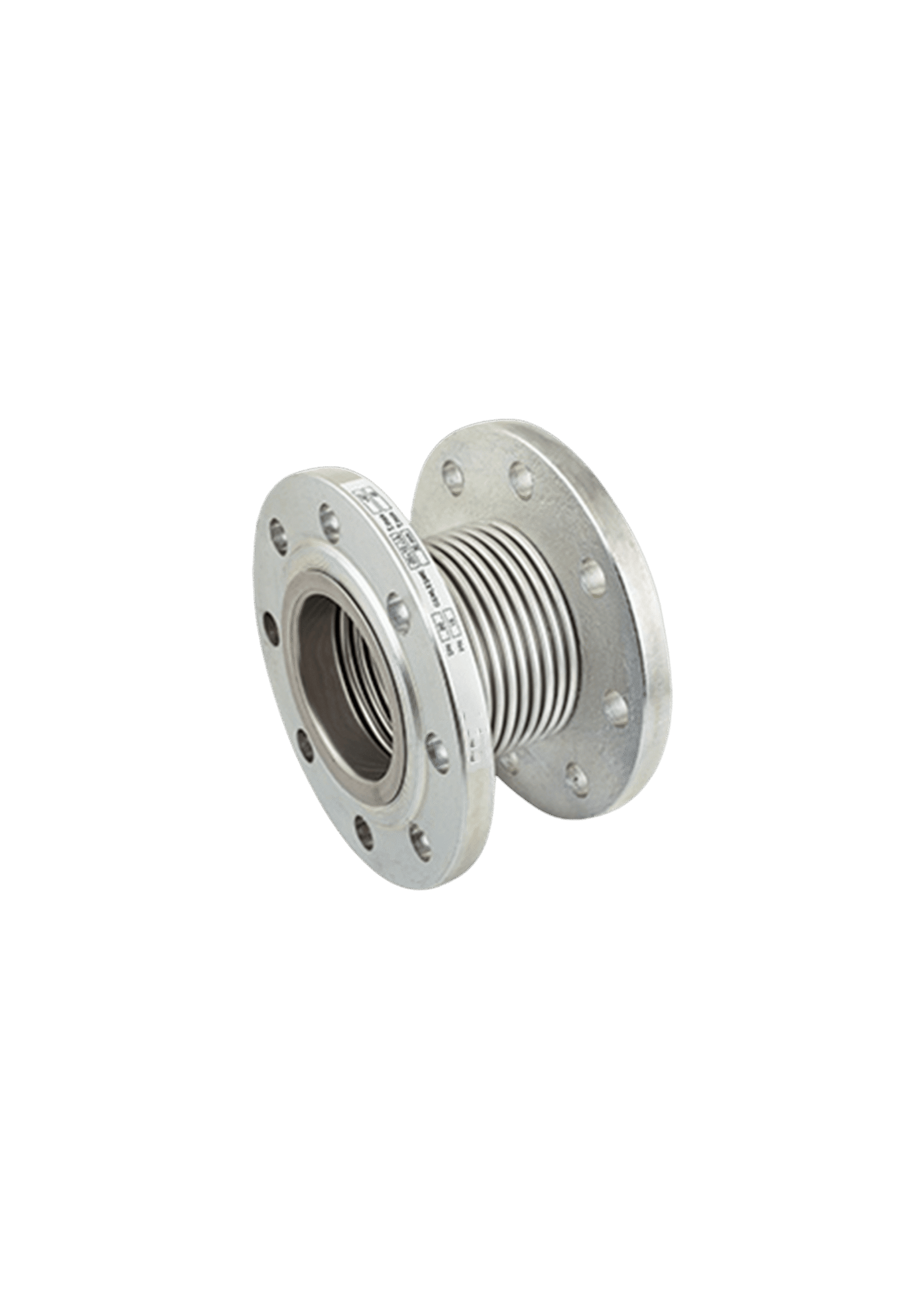

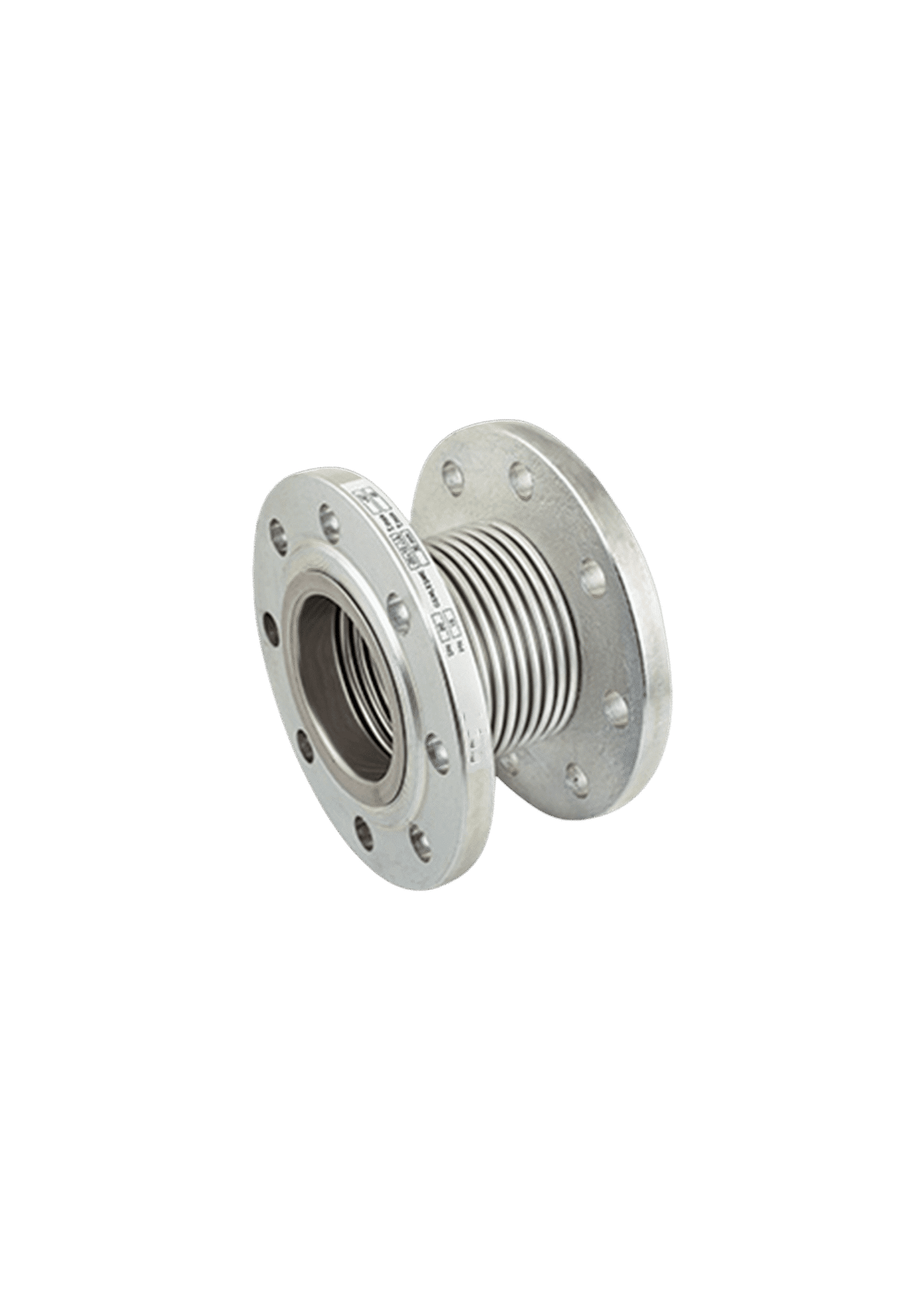

DEJ12 Axial Expansion Joint
Devinsan offers robust pipeline stress management solutions engineered for precise, single-axis movement absorption and reliable thermal compensation in high-pressure systems. Designed for optimal seal integrity and longevity, these DEJ12 Axial Expansion Joint units combine controlled bellows mechanism with flanged ends to meet the crucial demands of modern process heating and chilled water networks.
Production Standard
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Face to Face
Connection
Testing
DN 25 – DN 300
PN 10-PN 16
-30° / +400°
DIN 30681
EN 1092-1 ISO7005-1 Flanged
DIN 30681
Application Areas
The DEJ12 Axial Expansion Joint is widely used across diverse industrial and commercial sectors, delivering reliable flow control and long‑lasting performance.
1. Water and Wastewater Systems
2. Chemical Industry
3. Food and Beverage Industry
4. Pharmaceutical Industry
5. Oil and Gas Industry
6. HVAC (Heating, Ventilation, Air Conditioning) Systems
In these applications, this DEJ12 Axial Expansion Joint ensures precise fluid control, maintains excellent sealing integrity, and supports efficient, safe operation even under demanding conditions.
The DEJ12 Axial Expansion Joint is a vital pipeline component specifically engineered to absorb thermal expansion and contraction along a single axis within rigid piping systems. Designed to meet the stringent demands of modern infrastructure, this specialized joint ensures focused stress relief, providing essential structural stability, and long-term durability in environments subjected to significant temperature swings.
At the core of the DEJ12 Axial Expansion Joint is its precision-formed metal bellow element, which is the sole flexible component designed to manage the pipe’s change in length. This bellow allows for controlled axial compression and extension strictly along the pipe’s axis, preventing harmful thermal forces from transferring to fixed anchors, vessels, or connected rotating equipment. This mechanism is crucial for the safe operation of long-distance, high-temperature piping.
Manufactured from high-strength, corrosion-resistant materials (often stainless steel) and built with robust flanged ends, the DEJ12 Axial Expansion Joint is designed to withstand continuous system pressure and dynamic thermal cycles. While it absorbs movement, the joint requires main anchors in the pipeline system to manage the considerable thrust forces generated by the internal pressure, ensuring the bellow operates within its prescribed limits.
The DEJ12 Axial Expansion Joint is ideally suited for applications in steam distribution lines, petrochemical transfer pipes, large heating circuits, and chilled water loops where predictable thermal expansion is the primary source of pipeline stress. Its capability to absorb precise, directional movement makes it a preferred choice for engineers seeking a high-integrity, standards-compliant solution for long-term protection of fixed equipment.
In summary, the DEJ12 Axial Expansion Joint offers an optimal combination of reliable pressure containment, precise axial movement compensation, and system longevity. With its durable bellow element, robust flanged connections, and focus on directional stress relief, this unit stands as a trusted solution for modern fluid control and structural integrity requirements worldwide.
1. General Information
The DEJ12 Axial Expansion Joint is designed exclusively to absorb movement along the longitudinal axis of the pipe. Proper installation, including setting the correct pre-tension/compression, is essential to guarantee safe operation and maximum thermal movement absorption capacity.
2. Safety Precautions
Installation must be performed by qualified personnel only.
Ensure strict compliance with all local safety regulations and standards concerning working with pressurized, high-temperature pipelines and high-thrust forces.
Wear appropriate personal protective equipment (PPE).
Confirm that the pipeline section is fully depressurized, drained, and cooled (if applicable) before attempting to install the DEJ12 Axial Expansion Joint.
3. Pre-Installation Checklist
Inspect the DEJ12 Axial Expansion Joint for any visible damage during transport or storage, paying particular attention to the bellow convolutions and flange faces.
Check that the joint type, size, and pressure rating match the system requirements and the calculated thermal expansion.
Verify that the joint is clean and free from debris.
Confirm that the mating pipeline flanges are properly aligned (parallel and concentric) and free from rotational strain. Ensure that the main anchors adjacent to the joint are securely in place before pressurizing the system.
4. Installation Procedure
Positioning: Install the DEJ12 Axial Expansion Joint ensuring the joint is oriented correctly within the pipeline system. The joint must be installed at the pre-set cold length specified by the design engineer to distribute the thermal movement correctly.
Use the appropriate gaskets suitable for the medium and operating conditions.
Align the joint precisely between the pipeline flanges and insert bolts, tightening them gradually and crosswise in incremental steps. This ensures even compression of the gasket and prevents angular stress on the joint body.
5. Post-Installation
Slowly pressurize the system and check for leaks around the flange connections. If leakage is detected, depressurize the system immediately and re-tighten the bolts following the cross-pattern sequence. Verify that the initial cold set is correctly maintained and that the anchor points are functional. Record the installation details, initial set length, and final torques for documentation purposes.
Proper maintenance extends the service life of the DEJ12 Axial Expansion Joint and ensures reliable absorption of thermal movement and pressure stability. Follow the guidelines below to maximize the longevity of this essential unit.
1. Routine Operation
Visually inspect the DEJ12 Axial Expansion Joint exterior regularly (e.g., monthly) for signs of leakage, misalignment, or visible deviation from its installed length. Check for any visible cracking, corrosion, or thinning on the bellow material, especially after the system has reached its maximum operating temperature.
2. Inspection Schedule
Monthly, check the pipe threads (if present) or external hardware for signs of loosening or visible movement.
Quarterly, check the overall alignment of the joint and confirm that the adjacent pipeline guides and main anchors are functioning correctly.
Annually, perform a detailed inspection of the bellow surface for signs of fatigue cracking, pitting, or accumulation of corrosive debris.
3. Lubrication
The DEJ12 Axial Expansion Joint is a passive component and does not require lubrication. However, external hardware (bolts, nuts) should be kept clean to facilitate future maintenance and inspection.
4. Seal and Gasket Replacement
Replace the flange gaskets immediately if persistent external leakage is observed. The metal bellow element must be replaced if any fatigue cracks, permanent deformation, or signs of pressure loss are found, as this compromises containment. Always isolate the pipeline and fully depressurize the line before attempting to replace any part of the DEJ12 Axial Expansion Joint.
5. Cleaning
Keep the exterior of the DEJ12 Axial Expansion Joint clean to prevent surface corrosion and to ensure the bellow convolutions are free of external debris that could impede movement. If insulation is used, ensure it is removed and reapplied correctly without restricting the axial movement of the bellow.
6. Storage and Spare Parts
Store spare parts (gaskets, replacement bellows) in a dry, clean, and cool environment, away from direct sunlight and chemical exposure. Maintain a detailed record of all inspections, internal part replacements, and repairs performed on the DEJ12 Axial Expansion Joint unit.
We prioritize quality at every stage of production to deliver durable, safe, and efficient products. Our continuous improvement and strict quality controls keep us at the forefront of the industry.
Our certifications prove our commitment to excellence and compliance with international standards, ensuring the safety and reliability of our products worldwide.
We continuously invest in innovation and quality to expand our certifications and meet evolving industry needs.
Frequently Asked Questions about the DEJ12?
What are the main advantages of this valve?
The DEJ12 Axial Expansion Joint provides highly specialized stress relief by absorbing precise thermal expansion/contraction strictly along the pipe axis, which is crucial for preventing stress damage to pumps, heat exchangers, and sensitive components connected to long, hot pipelines.
Why should I choose this product?
This valve delivers outstanding performance in both sealing and durability, making it a dependable choice for demanding applications. Its straightforward design facilitates easy installation, offering flexibility during system design. With a wide range of material options, it meets the needs of various infrastructure projects, from municipal water networks to industrial facilities.
What does "axial" movement specifically refer to for the DEJ12 Axial Expansion Joint?
“Axial” movement refers to the change in length of the pipe along its centerline (compression or extension). The DEJ12 Axial Expansion Joint is designed to handle this singular, directional movement, offering controlled flexibility without introducing lateral or angular misalignment.
Why is proper anchoring essential when using the DEJ12 Axial Expansion Joint?
Anchoring is vital because the internal pressure of the fluid generates a significant thrust force against the joint’s effective area. The pipe anchors must be strong enough to absorb this entire thrust force, allowing the joint to perform its compensation function safely.
How is the DEJ12 Axial Expansion Joint pre-set before installation?
The DEJ12 Axial Expansion Joint is pre-set (or pre-compressed/extended) by the manufacturer or installer to an “ambient” cold length. This pre-setting ensures that the joint has maximum capacity to absorb both expansion (when the line heats up) and contraction (when the line cools down).
