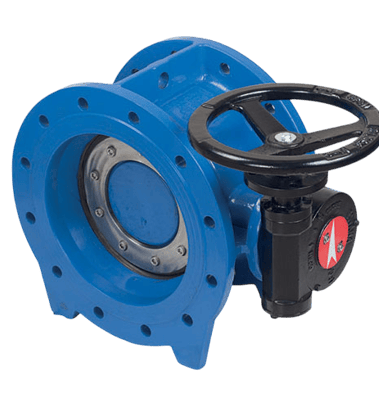

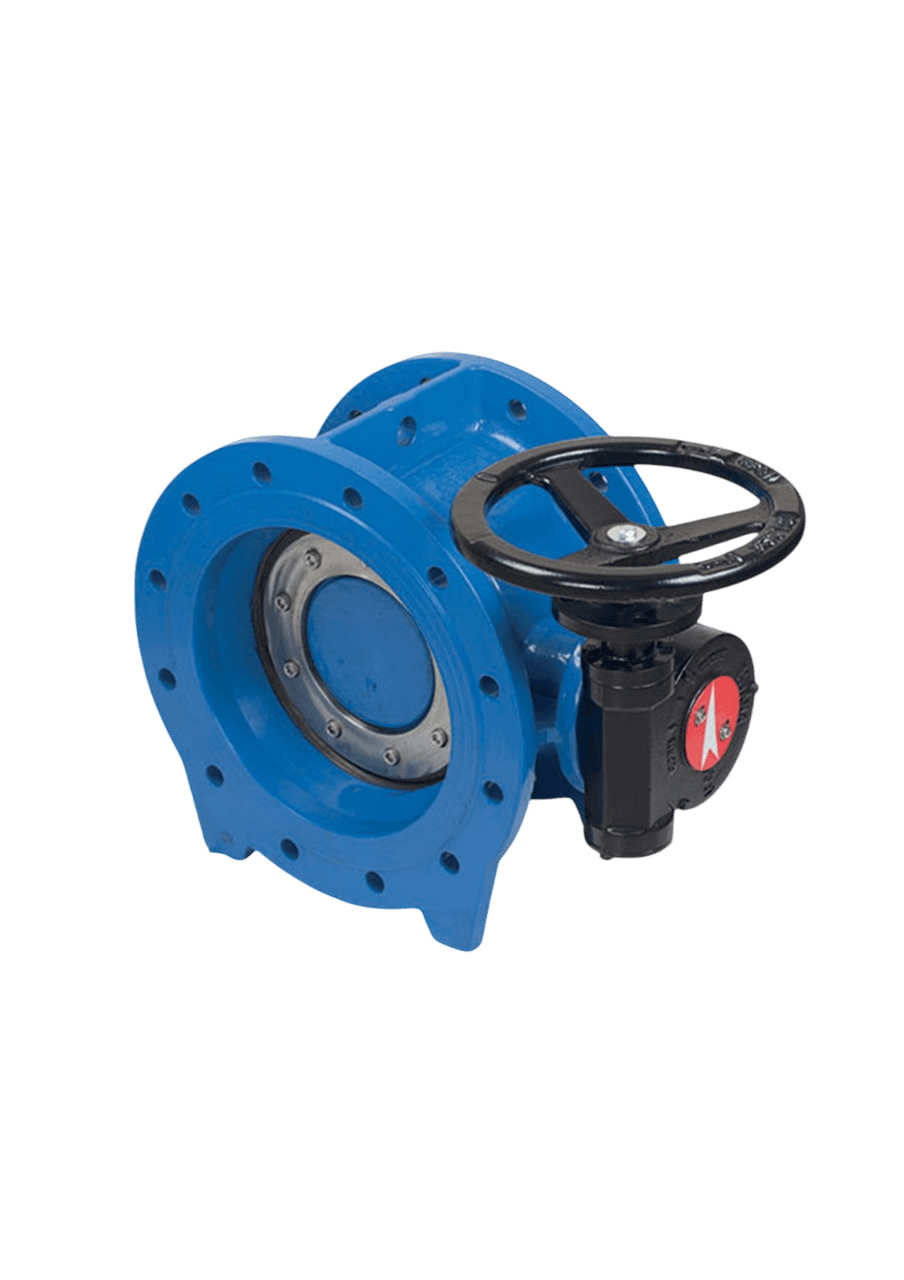

DBV10 Double Eccentric Butterfly Valve

Production Description

DBV10 Double Eccentric Butterfly Valves are a crucial type of valve designed for regulating the flow of liquids and gases in various industrial and commercial applications. These valves operate with a disc mounted within a body that pivots on two eccentric axes, allowing the valve to open and close with precision. The eccentric design reduces friction and wear, facilitating smooth operation and extended valve life.

A key advantage of DBV10 Double Eccentric Butterfly Valves is their ability to provide a tight and reliable seal. The disc's design, combined with a resilient seat, ensures effective shut-off and minimizes leakage, making them suitable for high-performance applications. This seal quality is particularly beneficial for systems requiring reliable control of flow, such as in water treatment, HVAC systems, and process industries.

In summary, DBV10 Double Eccentric Butterfly Valves are an essential valve technology that enhances efficiency and reliability in fluid and gas control systems, offering precise flow regulation and robust performance.

Production Standard

Nominal Dimension (DN)

Nominal Pressure (PN)

Operating Temperature

Design

Face to Face

Connection

Coating

Testing

DN 100 - DN 2000

PN 10-PN 16-PN 25-PN 40

-40° / +110­­°

EN 593

EN 558 Series 14 - DIN 3202 F4

EN 1092-2 ISO7005-2 Flanged

Electrostatic Powder Epoxy

EN 12266-1

Application Areas

DBV10 Double eccentric butterfly valves are widely used in various industrial and commercial applications.

1. Water Treatment Plants

2. HVAC (Heating, Ventilation, Air Conditioning) Systems

3. Process Industries

4. Pumping Stations

5. Mining and Metals

6. Power Generation

7. Wastewater Management

8. Agricultural Irrigation

9. Food and Beverage Industry

In these areas, DBV10 Double eccentric butterfly valves play a crucial role in controlling fluid flow, ensuring sealing integrity, and enhancing efficiency and safety in operations.

Operation Versions

DBV10 Double Eccentric Butterfly Valve can be operated with the following accessories:

1. DVA10 HandWheel

2. DVA11 Extension Spindle

3. DVA12 Telescopic Extension Spindle

4. DVA14 Electric Actuators

5. Hydraulic unit

These accessories enable DBV10 Double Eccentric Butterfly Valves to be controlled according to various automation needs in industrial and commercial applications.
