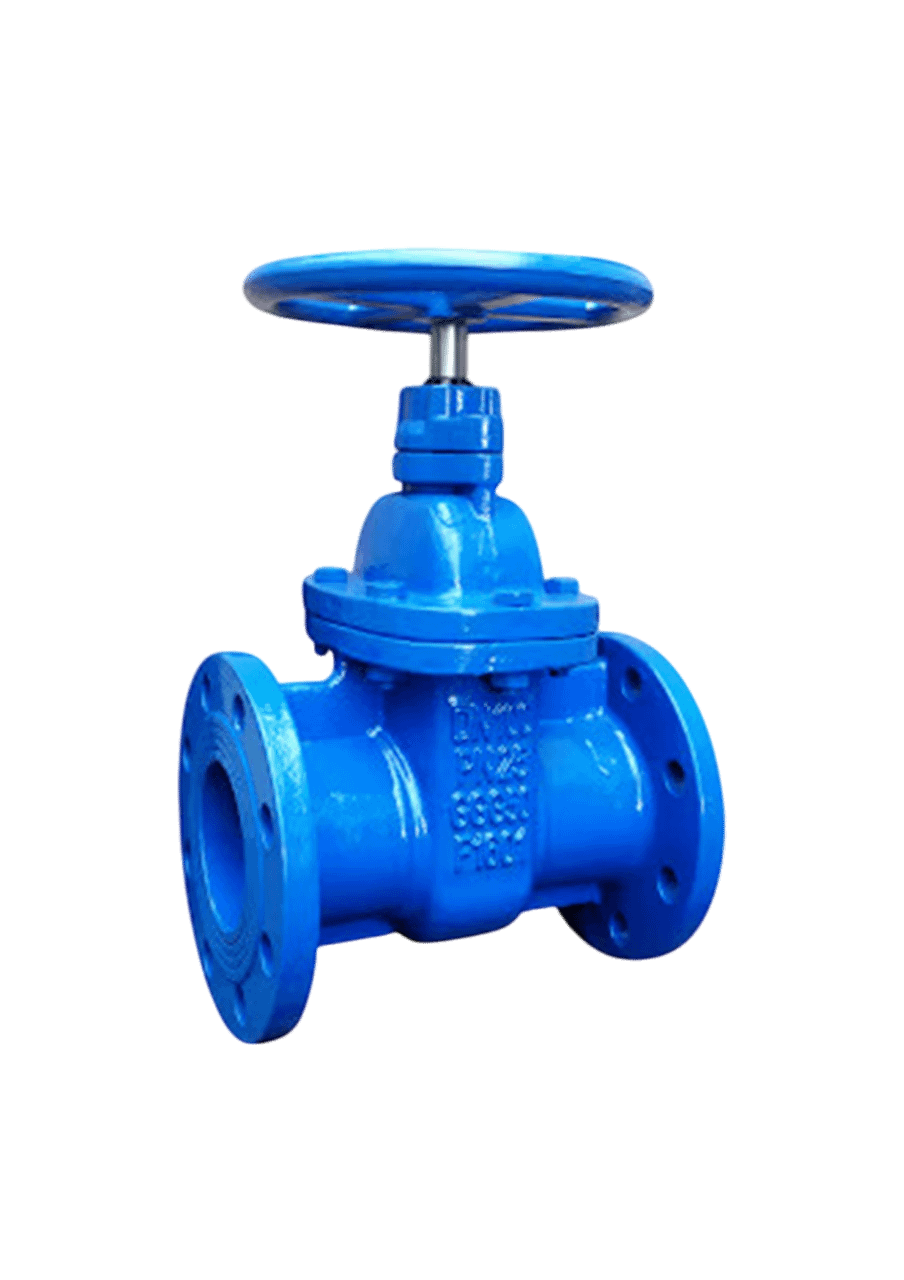

DGV13 F5 Metal Seated Gate Valve
Devinsan DGV15 Knife Gate Valve provides precise flow control and long service life for demanding heavy-duty process environments
Production Description
DGV13 F5 Metal Seated Gate Valves are a critical component used to regulate the flow of liquids in various industrial and commercial systems. These valves feature a gate with a metal seat that moves up and down within the valve body to either open or close the passage. The gate is operated by a threaded spindle located inside the body, providing precise control over the fluid flow.
One of the primary advantages of the DGV13 F5 Metal Seared Gate Valve model is its ability to provide long-lasting and leak-proof sealing. Thanks to its metal seat, the valve ensures complete shutdown of liquid flow when closed, effectively preventing leakage. This makes it particularly well-suited for systems where reliability and tight shutoff are essential, such as water and wastewater treatment applications.
In summary, DGV13 F5 Metal Seated Gate Valves represent a robust and dependable solution that enhances both safety and efficiency in fluid handling systems.
Production Description
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Design
Face to Face
Connection
Coating
Testing
DN 40 – DN 400
PN 6-PN 10-PN 16-PN 25-PN 40
-30° / +200°
EN 1171 – EN 1074
EN 558 Series 15 – DIN 3202 F5
EN 1092-2 ISO7005-2 Flanged
Industrial Epoxy
EN 12266-1
Operation Versions
DGV13 F5 Metal Seated Gate Valve can be operated with the following accessories:
1. DVA10 Surface Box & Extension Spindle
2. DVA11 Telescopic Extension Spindle
3. DVA12 Electric Actuators
4. DVA13 Pneumatic Actuators
5. DVA14 Gear Box
6. DVA15 HandWheel
These accessories enable DGV13 F5 Metal Seated Gate Valves to be controlled according to various automation needs in industrial and commercial applications.
Application Areas
DGV13 F5 Metal Seated Gate Valves are widely used in various industrial and commercial applications.
1. Water and Wastewater Systems
2. Oil and Gas Industry
3. Chemical Industry
4. Power Generation
5. Mining and Minerals Processing
6. Pulp and Paper Industry
7. HVAC (Heating, Ventilation, Air Conditioning) Systems
8. Pharmaceutical Manufacturing
9. Food and Beverage Industry
In these areas, DGV13 F5 Metal Seated Gate Valve play a crucial role in controlling fluid flow, ensuring sealing integrity, and enhancing efficiency and safety in operations.
Frequently Asked Questions about the DGV13 F5 Metal Seated Gate Valve
Why should I choose the DGV13 F5 Metal Seated Gate Valve over other models?
The DGV13 F5 Metal Seated Gate Valve is designed for high reliability, minimal maintenance requirements, and long-term operational efficiency, making it the preferred choice for critical systems where uninterrupted performance and leak prevention are essential.
What are the installation and maintenance requirements of the DGV13 F5 Metal Seated Gate Valve?
The DGV13 F5 Metal Seated Gate Valve should be installed by qualified professionals, following the manufacturer’s guidelines. Regular maintenance involves periodic inspections, lubrication of moving parts, and checking the sealing surfaces to maintain optimal performance over time.
What are the advantages of the DGV13 F5 Metal Seated Gate Valve?
The DGV13 F5 Metal Seated Gate Valve offers exceptional durability, precise flow control, and reliable leak-proof sealing. Its metal seat ensures a long service life, even under challenging operating conditions, making it ideal for demanding industrial and commercial applications.
