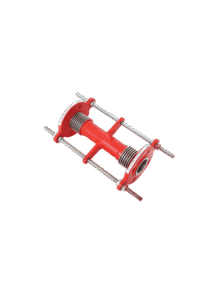

DEJ13 Dilatation Expansion Joint
Devinsan offers specialized structural stabilization solutions engineered for comprehensive management of significant building movement, including thermal shifts and seismic forces. Designed for optimal system protection and enduring flexibility, these DEJ13 Dilatation Expansion Joint units utilize a multi-directional bellow mechanism to meet the critical demands of modern building services and pipeline crossover points.
Production Standard
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Face to Face
Connection
Coating
Testing
DN 25 – DN 300
PN 10-PN 16
-30° / +400°
DIN 30681
EN 1092-1 ISO7005-1 Flanged
Industrial Epoxy
DIN 30681
Application Areas
The DEJ13 Dilatation Expansion Joint is widely used across diverse industrial and commercial sectors, delivering reliable flow control and long‑lasting performance.
1. Water and Wastewater Systems
2. Chemical Industry
3. Food and Beverage Industry
4. Pharmaceutical Industry
5. Oil and Gas Industry
6. HVAC (Heating, Ventilation, Air Conditioning) Systems
In these applications, this DEJ13 Dilatation Expansion Joint ensures precise fluid control, maintains excellent sealing integrity, and supports efficient, safe operation even under demanding conditions.
The DEJ13 Dilatation Expansion Joint is a premium pipeline component specifically engineered to absorb large, complex movements occurring at structural separation points (dilatation joints) in buildings, bridges, and infrastructure facilities. Designed to meet the stringent demands of modern construction, this specialized joint ensures focused stress relief, providing essential structural stability, and long-term durability in environments subjected to large, multi-plane displacements.
At the core of the DEJ13 Dilatation Expansion Joint is its robust, highly flexible bellow element, often designed to manage movement in three distinct axes: axial (compression/extension), lateral (sideways shear), and angular. This capability allows the joint to safely accommodate movements caused by seismic activity, building settlement, or large thermal fluctuations across expansive structures. The flexibility is vital for preventing the transmission of damaging strain to the rigid pipe sections.
Manufactured from high-strength, corrosion-resistant elastomers or metal alloys and built with robust flanged end connections, the DEJ13 Dilatation Expansion Joint is designed to withstand continuous system pressure while accommodating large, rapid displacements. The design ensures that the high thrust forces generated by internal pressure are managed safely by adjacent main anchors, guaranteeing the structural integrity of both the joint and the surrounding pipework.
The DEJ13 Dilatation Expansion Joint is ideally suited for critical applications where a pipeline crosses a building’s expansion joint, seismic zones, major utility junctions, or any system requiring robust, multi-directional movement absorption. Its capability to absorb complex movement makes it a preferred choice for engineers seeking a high-integrity, standards-compliant solution for long-term structural protection in high-stakes environments.
In summary, the DEJ13 Dilatation Expansion Joint offers an optimal combination of comprehensive multi-plane movement absorption, reliable pressure containment, and system longevity. With its highly durable bellow element, robust construction, and controlled flexibility, this unit stands as a trusted solution for modern fluid control and structural movement requirements worldwide.
1. General Information
The DEJ13 Dilatation Expansion Joint is designed primarily to absorb significant movement in multiple directions at building separation points. Proper installation, including verification of correct alignment and securing of adjacent anchors, is essential to guarantee safe operation and maximum movement capacity.
2. Safety Precautions
Installation must be performed by qualified personnel only.
Ensure strict compliance with all local safety regulations and standards concerning working with high-thrust forces and major structural components.
Wear appropriate personal protective equipment (PPE).
Confirm that the pipeline section is fully depressurized, drained, and cooled (if applicable) before attempting to install the DEJ13 Dilatation Expansion Joint.
3. Pre-Installation Checklist
Inspect the DEJ13 Dilatation Expansion Joint for any visible damage during transport or storage, paying particular attention to the integrity of the bellow and flange faces.
Check that the joint type, size, and pressure rating match the system requirements and the expected range of structural movement (dilatation range).
Verify that the joint is clean and free from construction debris.
Confirm that the mating pipeline flanges are properly aligned (parallel and concentric) and free from rotational strain. Ensure that the main anchors on either side of the expansion joint are fully secured and inspected.
4. Installation Procedure
Positioning: Install the DEJ13 Dilatation Expansion Joint ensuring the joint is oriented correctly relative to the primary movement axis. The joint must be set to the length required for the “neutral position” at ambient temperature to allow for equal compression and extension capacity.
Use the appropriate gaskets suitable for the medium and operating conditions.
Align the joint precisely between the pipeline flanges and insert bolts, tightening them gradually and crosswise in incremental steps. This ensures even compression of the gasket and prevents angular stress on the joint body.
5. Post-Installation
Slowly pressurize the system and check for leaks around the flange connections. If leakage is detected, depressurize the system immediately and re-tighten the bolts following the cross-pattern sequence. Verify that the installed length corresponds to the designed neutral setting for the DEJ13 Dilatation Expansion Joint. Record the installation details, neutral set length, and final torques for documentation purposes.
Proper maintenance extends the service life of the DEJ13 Dilatation Expansion Joint and ensures reliable absorption of structural and thermal movement. Follow the guidelines below to maximize the longevity of this essential unit.
1. Routine Operation
Visually inspect the DEJ13 Dilatation Expansion Joint exterior regularly (e.g., monthly) for signs of leakage, misalignment, or visible distortion in the bellow convolutions. Check for any visible cracking or tearing on the bellow material, which may indicate over-extension or excessive fatigue cycling.
2. Inspection Schedule
Monthly, check the pipe flanges and hardware for signs of loosening or visible movement.
Quarterly, check the overall alignment of the joint and confirm that the main anchors and guides are functioning correctly across the structural break.
Annually, perform a detailed inspection of the bellow surface for signs of fatigue cracking, pitting, or accumulation of corrosive debris.
3. Lubrication
The DEJ13 Dilatation Expansion Joint is a passive component and does not require lubrication. All external hardware should be kept clean to facilitate future inspection and potential replacement.
4. Seal and Gasket Replacement
Replace the flange gaskets immediately if persistent external leakage is observed. The bellow element must be replaced if any fatigue damage, severe thinning, or permanent deformation is found, as this compromises pressure containment integrity. Always isolate the pipeline and fully depressurize the line before attempting to replace any part of the DEJ13 Dilatation Expansion Joint.
5. Cleaning
Keep the exterior of the DEJ13 Dilatation Expansion Joint clean to prevent surface corrosion and to ensure the bellow convolutions are free of external debris that could impede movement. Ensure that the area around the joint is clear of foreign materials that could crush or damage the bellow during structural movement.
6. Storage and Spare Parts
Store spare parts (gaskets, replacement bellows) in a dry, clean, and cool environment, away from direct sunlight and chemical exposure. Maintain a detailed record of all inspections, internal part replacements, and repairs performed on the DEJ13 Dilatation Expansion Joint unit.
We prioritize quality at every stage of production to deliver durable, safe, and efficient products. Our continuous improvement and strict quality controls keep us at the forefront of the industry.
Our certifications prove our commitment to excellence and compliance with international standards, ensuring the safety and reliability of our products worldwide.
We continuously invest in innovation and quality to expand our certifications and meet evolving industry needs.
Frequently Asked Questions about the DEJ13?
What are the main advantages of this valve?
The DEJ13 Dilatation Expansion Joint offers unmatched ability to absorb large, simultaneous movements in multiple directions (axial, lateral, angular), making it the ideal component for pipelines crossing building expansion joints and seismic separations.
Why should I choose this product?
This valve delivers outstanding performance in both sealing and durability, making it a dependable choice for demanding applications. Its straightforward design facilitates easy installation, offering flexibility during system design. With a wide range of material options, it meets the needs of various infrastructure projects, from municipal water networks to industrial facilities.
What is the primary purpose of a 'dilatation' expansion joint?
The primary purpose is to absorb the movement between two distinct structural sections of a building or foundation, ensuring the pipe running across the break is protected from damaging forces like seismic shift or concrete expansion/contraction.
How does the DEJ13 Dilatation Expansion Joint manage multi-directional movement?
It manages multi-directional movement through its flexible bellow element, which is specifically designed to compress, extend, and flex laterally simultaneously, maintaining a sealed connection across the dynamically moving structural gap.
Does the DEJ13 Dilatation Expansion Joint require guide piping?
Yes. To ensure the flexible element only experiences the designed axial and lateral movements and to prevent buckling, the pipeline adjacent to the DEJ13 Dilatation Expansion Joint must be properly supported and guided according to engineering specifications.
