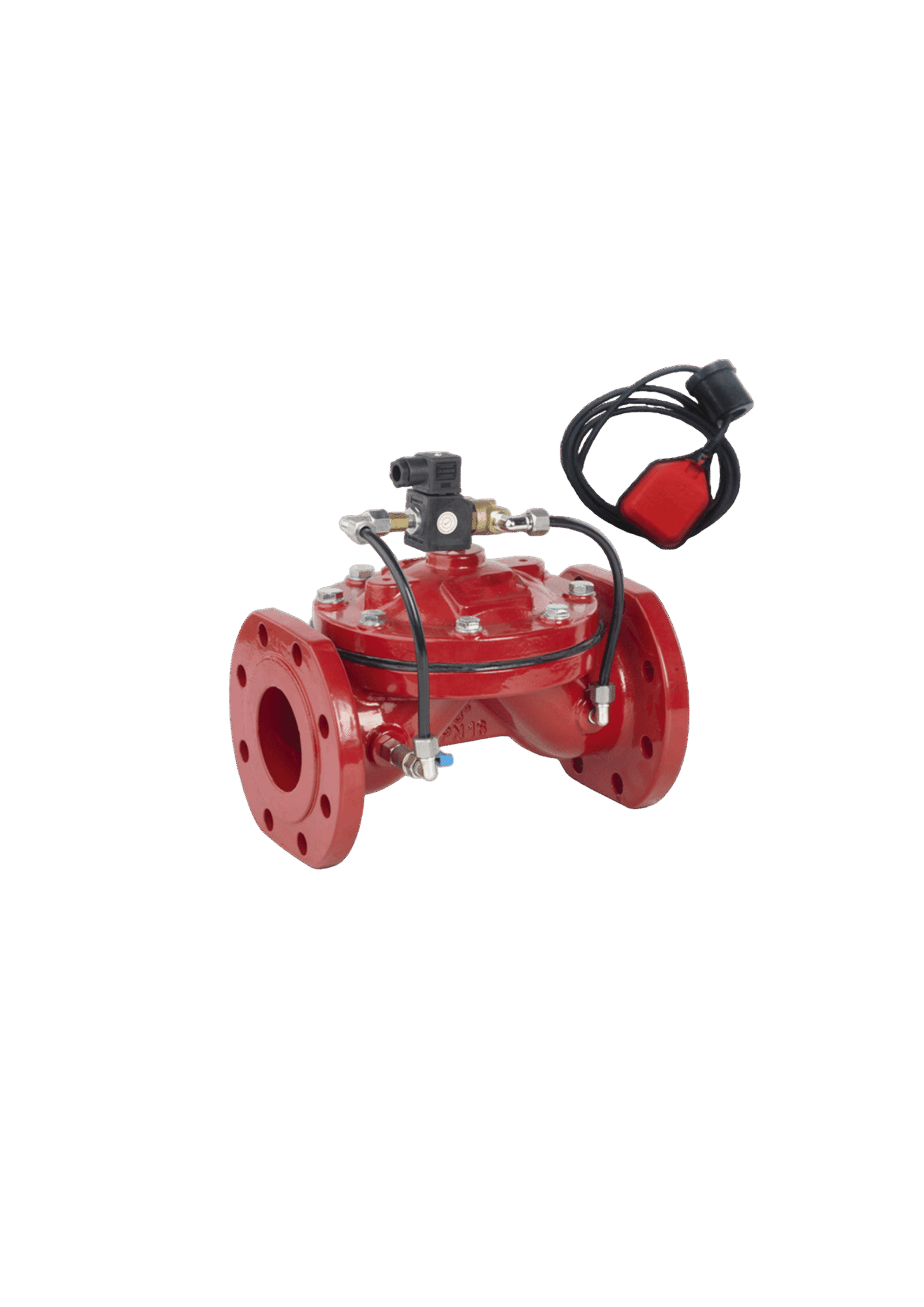

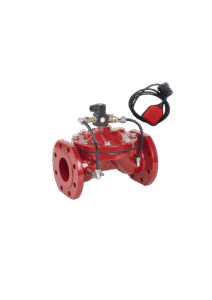

DCT18 Electric Float Level Control Valve
Devinsan offers highly integrated digital control solutions engineered for automated, precise level management and remote inventory monitoring in major storage facilities. Designed for energy efficiency and flexible set-point programming, these DCT18 Electric Float Level Control Valve units utilize a solenoid pilot to meet the critical demands of modern municipal water storage automation.
Production Standard
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Connection
Coating
Testing
DN 40 – DN 200
PN 6-PN 10-PN 16
-30° / +200°
EN 1092-2 ISO7005-2 Flanged
Electrostatic Powder Epoxy
TS EN 14384
Application Areas
The DCT18 Electric Float Level Control Valve is widely used across diverse industrial and commercial sectors, delivering reliable flow control and long‑lasting performance.
1. Water and Wastewater Systems
2. Chemical Industry
3. Food and Beverage Industry
4. Pharmaceutical Industry
5. Oil and Gas Industry
6. HVAC (Heating, Ventilation, Air Conditioning) Systems
In these applications, this type DCT18 Electric Float Level Control Valve ensures precise fluid control, maintains excellent sealing integrity, and supports efficient, safe operation even under demanding conditions.
The DCT18 Electric Float Level Control Valve is an advanced, hydraulically-operated valve specifically engineered to perform fully automatic level regulation based on an external electrical float switch signal. Designed to meet the stringent demands of modern infrastructure, this specialized valve ensures precise level maintenance, minimizes overflow waste, and provides reliable integration into SCADA systems for sophisticated reservoir management.
At the core of the DCT18 Electric Float Level Control Valve is its diaphragm-actuated main valve controlled by an internal solenoid pilot which receives its signal from the remote electric float switch located in the storage tank. This electrical signal instantly commands the main valve to open (when the level drops) or close (when the level rises), providing positive, ON/OFF isolation that prevents tank overfilling.
Manufactured from high-strength, corrosion-resistant materials (such as ductile iron) and built with a robust, globe-style body, the DCT18 Electric Float Level Control Valve is designed to withstand continuous system pressure and dynamic flow forces. Its reliance on an electrical signal for control allows for the separation of the sensing point (float) from the control point (valve), offering greater flexibility in system design and installation compared to direct-acting mechanical floats.
The DCT18 Electric Float Level Control Valve is ideally suited for applications in large water storage reservoirs, municipal ground-level tanks, industrial cooling towers, and any facility requiring highly reliable, automated level management that must interface with centralized control systems. Its superior electrical control characteristics and dependable operation make it a preferred choice for engineers seeking a high-integrity, standards-compliant solution for long-term inventory and network stability.
In summary, the DCT18 Electric Float Level Control Valve offers an optimal combination of electrical automation, robust leak protection, and accurate level sensing capability. With its solenoid-piloted mechanism, durable construction, and focus on remote digital management, this unit stands as a trusted solution for modern fluid control and water storage management requirements worldwide.
1. General Information
The DCT18 Electric Float Level Control Valve is designed for the accurate, automatic regulation of fluid level in storage vessels via a remote electrical signal. Proper installation, including securing both electrical and hydraulic lines, is essential to guarantee safe operation, long service life, and efficient reservoir management.
2. Safety Precautions
Installation must be performed by qualified personnel only, with specific expertise in high-pressure hydraulics and low-voltage electrical wiring.
Ensure strict compliance with all local safety regulations and standards concerning working with pressurized pipelines and submerged electrical components.
Wear appropriate personal protective equipment (PPE).
Confirm that the pipeline section feeding the reservoir is fully depressurized, isolated, and drained before attempting to install the DCT18 Electric Float Level Control Valve.
3. Pre-Installation Checklist
Inspect the DCT18 Electric Float Level Control Valve for any visible damage during transport or storage, paying attention to the main diaphragm housing, solenoid pilot, and external float arm integrity.
Check that the valve type, size, pressure rating, and solenoid voltage match the system requirements.
Verify that the valve interior and pilot line strainers are clean and free from debris.
Confirm that the mating pipeline flanges are properly aligned (parallel and concentric) and free from burrs or sharp edges.
Ensure the external float switch is correctly installed at the required level inside the reservoir before wiring the valve.
4. Installation Procedure
Positioning: Install the DCT18 Electric Float Level Control Valve ensuring the flow direction adheres to the arrow cast on the body.
The main valve is typically installed outside the reservoir, connected to the solenoid pilot which receives the electrical command.
Use the appropriate gaskets suitable for the medium and operating conditions.
Align the valve precisely between the pipeline flanges and insert bolts, tightening them gradually and crosswise in incremental steps.
Wire the solenoid pilot according to the manufacturer’s low-voltage specifications and connect the float switch leads securely.
5. Post-Installation
Slowly open the upstream isolation valve to reintroduce fluid and pressurize the system, checking immediately for leaks around the flange connections and the pilot tubing.
If leakage is detected, depressurize the system immediately and re-tighten the bolts or connections following the cross-pattern sequence.
Verify the electrical ON/OFF function by manually testing the float switch positions, confirming the valve opens and closes smoothly.
Record the installation details, electrical specs, and final notes for documentation purposes.
Proper maintenance extends the service life of the DCT18 Electric Float Level Control Valve and ensures continuous, reliable automated level regulation. Follow the guidelines below to maximize the longevity of this essential unit.
1. Routine Operation
Visually inspect the DCT18 Electric Float Level Control Valve exterior, pilot line tubing, and external float wiring regularly (e.g., monthly) for signs of external leakage or corrosion.
Monitor the valve’s switching cycles and the reservoir level closely to ensure the valve prevents overflow and reacts promptly to the electrical signal.
2. Inspection Schedule
Monthly, check the pilot system strainers and filters for fouling and clean them to ensure accurate hydraulic operation.
Quarterly, check the security of the solenoid coil and wiring connections; ensure the coil housing remains dry and undamaged.
Annually, perform a detailed internal inspection by removing the main cover to check the condition of the diaphragm, seating surface, and stem seals for wear or pitting.
3. Lubrication
The DCT18 Electric Float Level Control Valve utilizes fluid-lubricated internal parts (water).
Ensure the solenoid pilot armature is clean and moves freely.
4. Seal and Gasket Replacement
Replace the main cover/diaphragm gasket and pilot tubing seals immediately if external leakage is observed.
The main valve seat and disc seals should be replaced if the valve fails to provide tight isolation (leaks through when closed).
Always isolate the valve and fully depressurize and drain the line before attempting any maintenance work requiring cover removal.
5. Cleaning
Keep the exterior of the DCT18 Electric Float Level Control Valve clean, particularly the solenoid coil area, to prevent surface corrosion and thermal issues.
If the valve is disassembled, clean all internal guiding surfaces and the pilot components carefully to ensure precision hydraulic response.
6. Storage and Spare Parts
Store spare parts (diaphragms, pilot coils, pilot kits, gaskets) in a dry, clean, and cool environment, away from direct sunlight and temperature extremes.
Maintain a detailed record of all inspections, electrical tests, and repairs performed on the DCT18 Electric Float Level Control Valve unit.
We prioritize quality at every stage of production to deliver durable, safe, and efficient products. Our continuous improvement and strict quality controls keep us at the forefront of the industry.
Our certifications prove our commitment to excellence and compliance with international standards, ensuring the safety and reliability of our products worldwide.
We continuously invest in innovation and quality to expand our certifications and meet evolving industry needs.
Frequently Asked Questions about the DCT18?
What are the main advantages of this valve?
The DCT18 Electric Float Level Control Valve provides accurate, automated level control based on an electrical signal, offering flexibility to locate the float sensor far from the main valve and enabling easy integration with SCADA or telemetry systems.
Why should I choose this product?
This valve delivers outstanding performance in both sealing and durability, making it a dependable choice for demanding applications. Its straightforward design facilitates easy installation, offering flexibility during system design. With a wide range of material options, it meets the needs of various infrastructure projects, from municipal water networks to industrial facilities.
How does the DCT18 Electric Float Level Control Valve differ from a standard hydraulic float valve?
The primary difference is the DCT18 Electric Float Level Control Valve uses an electrical signal (ON/OFF) from the float switch to command the main valve via a solenoid pilot, rather than using direct hydraulic pressure from a mechanical float linkage.
Can the DCT18 Electric Float Level Control Valve be used for multi-level control (e.g., controlling a pump based on high/low limits)?
Yes. Since the control is electrical, the DCT18 Electric Float Level Control Valve can be wired to multi-point level switches or pump controls, allowing the valve to function as part of a complex pump sequencing or reservoir management scheme.
What happens if the electrical power to the solenoid is lost?
The valve should be configured to fail-safe. Depending on the critical application, the DCT18 Electric Float Level Control Valve can be set up to either close (isolate the tank) or remain in its last position upon loss of power, usually achieved via a separate fail-safe latching relay.
