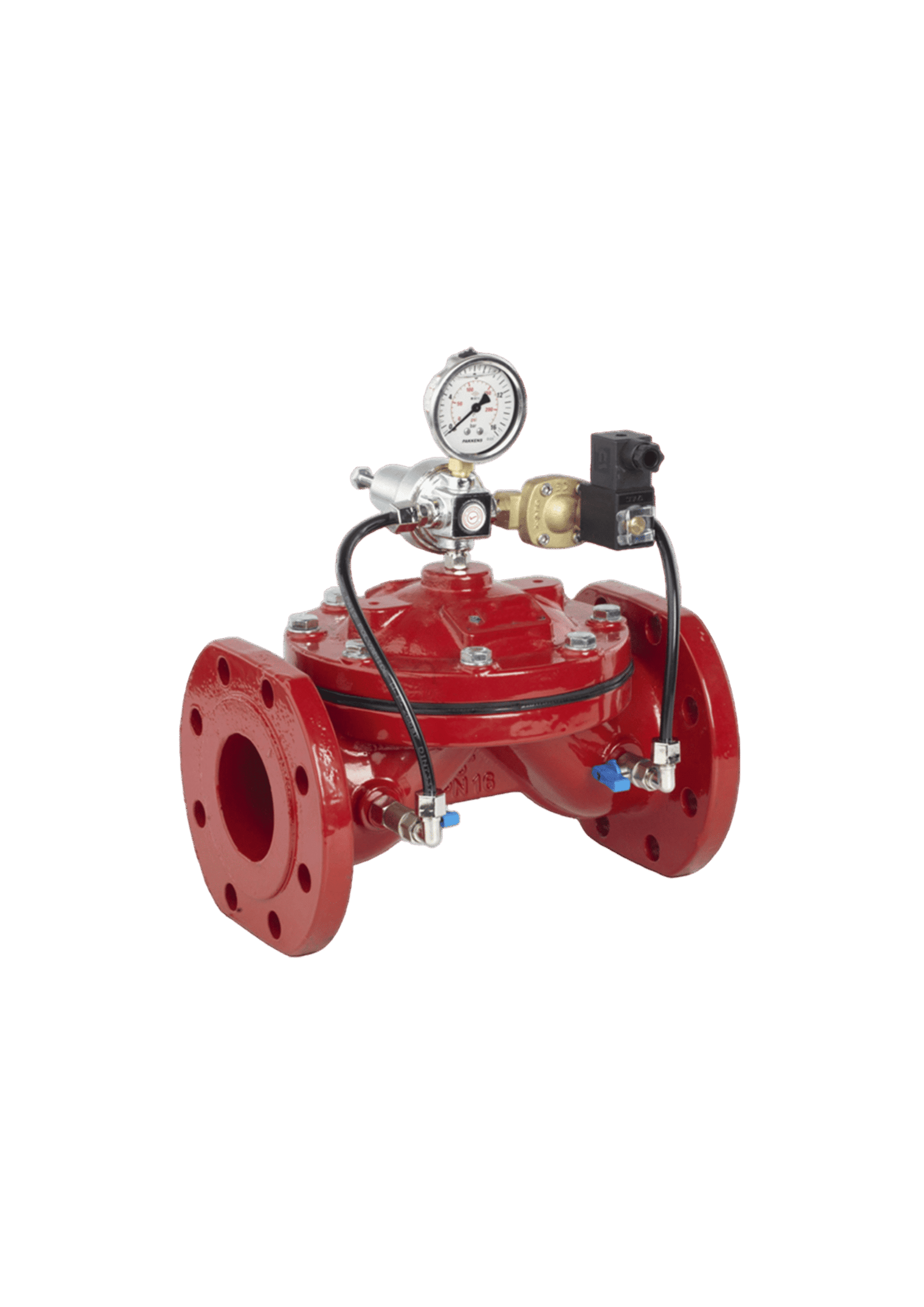

DCT16 Pressure Regulated Solenoid Control Valve
Devinsan offers hybrid hydraulic management solutions engineered for automated switching between multiple, precise pressure set points via electrical command. Designed for adaptive network control and high operational flexibility, these DCT16 Pressure Regulated Solenoid Control Valve units provide pilot-operated accuracy to meet the critical demands of modern municipal district metering and zone regulation.
Production Standard
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Connection
Coating
Testing
DN 40 – DN 200
PN 6-PN 10-PN 16
-30° / +200°
EN 1092-2 ISO7005-2 Flanged
Electrostatic Powder Epoxy
TS EN 14384
Application Areas
The DCT16 Pressure Regulated Solenoid Control Valve is widely used across diverse industrial and commercial sectors, delivering reliable flow control and long‑lasting performance.
1. Water and Wastewater Systems
2. Chemical Industry
3. Food and Beverage Industry
4. Pharmaceutical Industry
5. Oil and Gas Industry
6. HVAC (Heating, Ventilation, Air Conditioning) Systems
In these applications, this type DCT16 Pressure Regulated Solenoid Control Valve ensures precise fluid control, maintains excellent sealing integrity, and supports efficient, safe operation even under demanding conditions.
The DCT16 Pressure Regulated Solenoid Control Valve is an advanced, multi-functional valve specifically engineered to perform automatic pressure reduction or regulation, with the capability of switching the pressure set point based on an electrical signal. Designed to meet the stringent demands of modern infrastructure, this specialized valve ensures precise hydraulic control, outstanding durability, and reliable automated adaptation to changing network requirements.
At the core of the DCT16 Pressure Regulated Solenoid Control Valve is its hydraulically-operated main valve controlled by a dual-pilot system (one pressure reducing pilot and one solenoid pilot). The pressure reducing pilot sets the default downstream pressure. When the solenoid pilot is electrically activated, it overrides the default pilot, causing the main valve to regulate to a secondary, pre-determined pressure set point.
Manufactured from high-strength, corrosion-resistant materials and built with a robust, globe-style body, the DCT16 Pressure Regulated Solenoid Control Valve is designed to withstand continuous system pressure and dynamic operational forces. The ability to remotely switch between two distinct pressure levels (e.g., high day pressure and low night pressure) significantly optimizes the distribution network, minimizing leaks and reducing pumping energy consumption.
The DCT16 Pressure Regulated Solenoid Control Valve is ideally suited for applications in District Metering Areas (DMAs), water transmission zones requiring time-based pressure changes, and any system where automated management of variable minimum night flow (MNF) pressure is essential for leakage control. Its superior adaptive characteristics and dependable operation make it a preferred choice for engineers seeking a high-integrity, standards-compliant solution for long-term network efficiency and conservation.
In summary, the DCT16 Pressure Regulated Solenoid Control Valve offers an optimal combination of pressure regulation, electrical automation, and flexible set-point switching. With its pilot-operated mechanism, dual-control system, and focus on adaptive management, this unit stands as a trusted solution for modern fluid control and smart network requirements worldwide.
1. General Information
The DCT16 Pressure Regulated Solenoid Control Valve is designed for automated, accurate regulation and switching between two distinct downstream pressure settings. Proper installation is essential to guarantee safe operation, long service life, and efficient system performance.
2. Safety Precautions
Installation must be performed by qualified personnel only, including certified electricians for wiring.
Ensure strict compliance with all local safety regulations and standards concerning working with high-pressure pipelines and electrical components.
Wear appropriate personal protective equipment (PPE).
Confirm that the pipeline section and all pilot lines are fully depressurized, isolated, and drained before attempting to install the DCT16 Pressure Regulated Solenoid Control Valve.
3. Pre-Installation Checklist
Inspect the DCT16 Pressure Regulated Solenoid Control Valve for any visible damage during transport or storage, paying attention to the main diaphragm housing, both pilot valves, and pilot tubing integrity.
Check that the valve type, size, and pressure rating match the system requirements.
Verify that the valve interior and pilot line strainers are clean and free from debris.
Confirm that the mating pipeline flanges are properly aligned (parallel and concentric) and free from burrs or sharp edges.
Ensure both pilot mechanisms are correctly calibrated to the required high and low set points before commissioning.
4. Installation Procedure
Positioning: Install the DCT16 Pressure Regulated Solenoid Control Valve ensuring the flow direction adheres to the arrow cast on the body.
The valve must be installed with dedicated isolation valves on either side and a bypass line for redundancy.
Use the appropriate gaskets suitable for the medium and operating conditions.
Align the valve precisely between the pipeline flanges and insert bolts, tightening them gradually and crosswise in incremental steps.
Wire the solenoid coil to the electrical control system according to the specified voltage and functionality.
5. Post-Installation
Slowly open the upstream isolation valve to reintroduce fluid and pressurize the system, checking immediately for leaks around the flange connections and the pilot tubing.
If leakage is detected, depressurize the system immediately and re-tighten the bolts or connections following the cross-pattern sequence.
Verify the solenoid’s electrical command correctly switches the downstream pressure between the high and low set points.
Record the installation details, set pressures, and final notes for documentation purposes.
Proper maintenance extends the service life of the DCT16 Pressure Regulated Solenoid Control Valve and ensures continuous, accurate dual-point pressure regulation. Follow the guidelines below to maximize the longevity of this essential unit.
1. Routine Operation
Visually inspect the DCT16 Pressure Regulated Solenoid Control Valve exterior, pilot line tubing, and electrical conduit regularly (e.g., monthly) for signs of external leakage, vibration, or corrosion.
Monitor the system pressure closely to confirm the valve maintains both the primary and secondary set points accurately upon electrical command.
2. Inspection Schedule
Monthly, check the pilot system strainers and filters for fouling and clean them to ensure accurate pressure sensing.
Quarterly, check the security of the solenoid coil and wiring connections; ensure the coil housing remains dry and undamaged.
Annually, perform a detailed internal inspection by removing the main cover to check the condition of the diaphragm, seating surface, and stem seals for wear or pitting.
3. Lubrication
The DCT16 Pressure Regulated Solenoid Control Valve utilizes fluid-lubricated internal parts (water).
External stem threads or guides (if applicable) may require periodic lubrication; use only recommended grease types.
4. Seal and Gasket Replacement
Replace the main cover/diaphragm gasket and pilot tubing seals immediately if external leakage is observed.
The main valve seat and disc seals should be replaced if pressure control fails (i.e., the valve leaks through or cannot maintain the set point).
Always isolate the valve and fully depressurize and drain the line before attempting any maintenance work requiring cover removal.
5. Cleaning
Keep the exterior of the DCT16 Pressure Regulated Solenoid Control Valve clean to prevent surface corrosion.
If the valve is disassembled, clean all internal guiding surfaces and the pilot line components carefully to ensure precision hydraulic response.
6. Storage and Spare Parts
Store spare parts (diaphragms, pilot kits, solenoids, gaskets) in a dry, clean, and cool environment, away from direct sunlight and temperature extremes.
Maintain a detailed record of all inspections, pressure tests, and repairs performed on the DCT16 Pressure Regulated Solenoid Control Valve unit.
We prioritize quality at every stage of production to deliver durable, safe, and efficient products. Our continuous improvement and strict quality controls keep us at the forefront of the industry.
Our certifications prove our commitment to excellence and compliance with international standards, ensuring the safety and reliability of our products worldwide.
We continuously invest in innovation and quality to expand our certifications and meet evolving industry needs.
Frequently Asked Questions about the DCT16?
What are the main advantages of this valve?
The DCT16 Pressure Regulated Solenoid Control Valve offers the unique capability of automated pressure management based on time or SCADA signal, enabling utilities to perform essential nighttime pressure reduction for leakage control without manual intervention.
Why should I choose this product?
This valve delivers outstanding performance in both sealing and durability, making it a dependable choice for demanding applications. Its straightforward design facilitates easy installation, offering flexibility during system design. With a wide range of material options, it meets the needs of various infrastructure projects, from municipal water networks to industrial facilities.
What is the role of the solenoid in the DCT16 Pressure Regulated Solenoid Control Valve?
The solenoid acts as an override switch; it electrically commands the valve to switch from the high (default) pressure setting to the secondary low pressure setting (or vice versa), allowing automated pressure modulation based on flow demand or time of day.
How does the DCT16 Pressure Regulated Solenoid Control Valve optimize leakage control in DMAs?
By automatically switching to a lower pressure set point during periods of low consumption (typically night-time), the DCT16 Pressure Regulated Solenoid Control Valve significantly reduces the background leakage rate across the District Metered Area (DMA), conserving water.
How are the two pressure set points (High/Low) configured on the DCT16 Pressure Regulated Solenoid Control Valve?
The two set points are configured hydraulically using two distinct pilot valves (one for the high setting and one for the low setting). The solenoid simply selects which pilot valve is active and controls the main valve at any given time.
