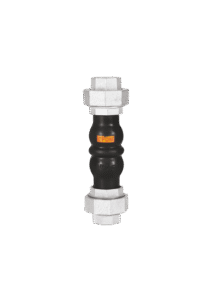

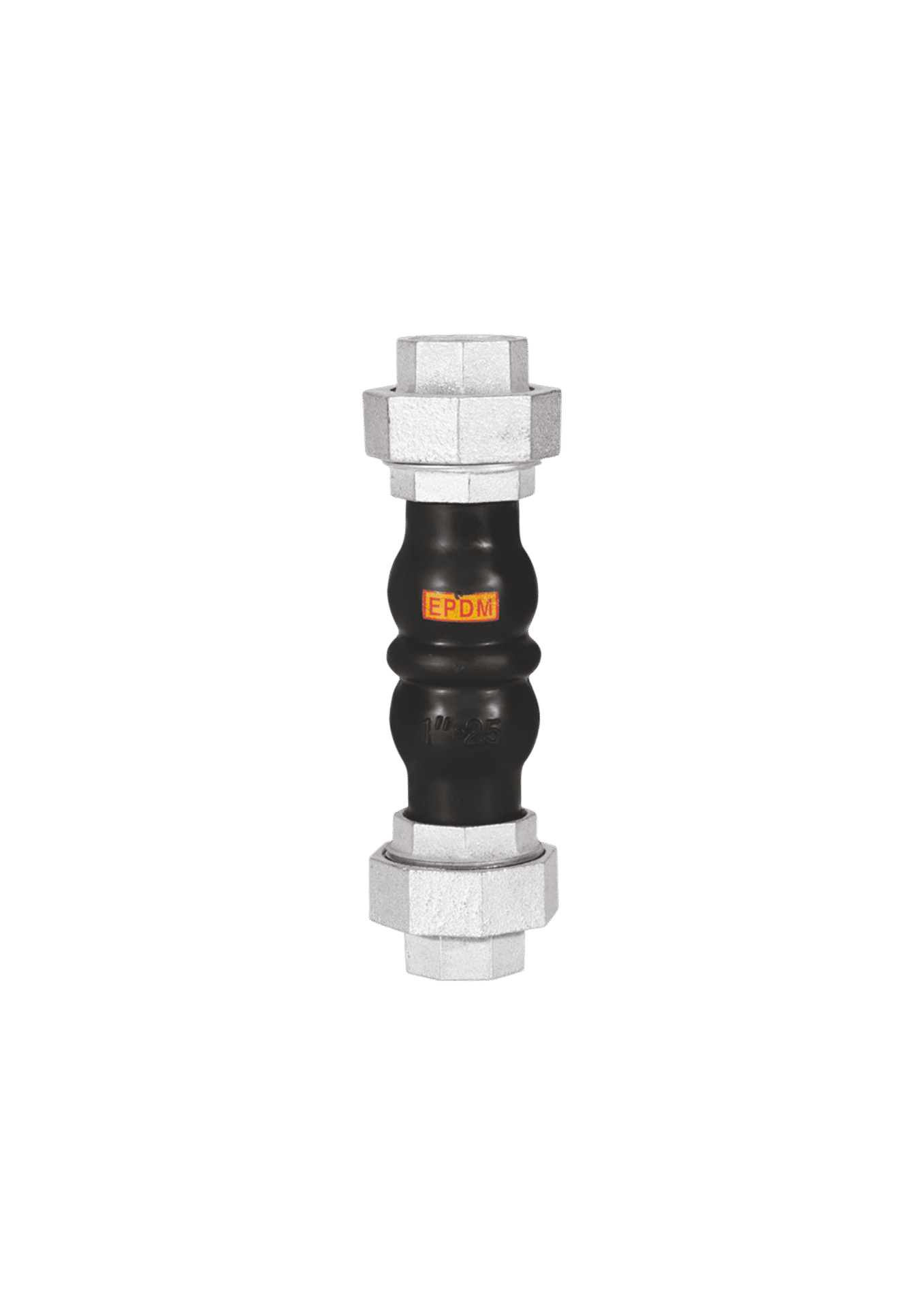

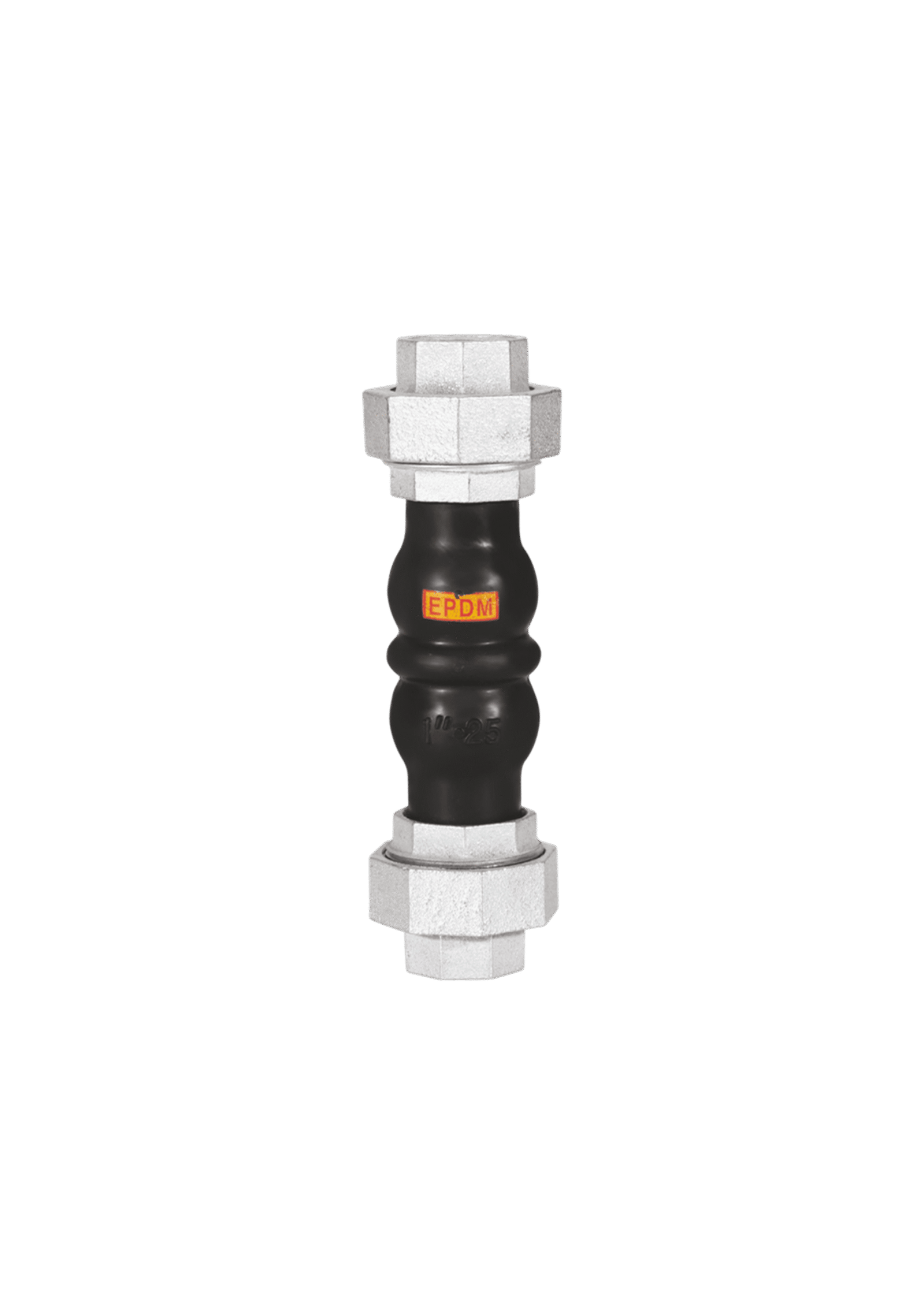

DEJ11 Threaded Expansion Joint
Devinsan offers specialized motion control solutions engineered for reliable management of thermal expansion and system vibration in auxiliary and small-diameter piping. Designed for rapid integration and enduring structural safety, these DEJ11 Threaded Expansion Joint units utilize a flexible bellow element and standard threaded ends to meet the crucial demands of complex commercial and light industrial installations.
Production Standard
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Face to Face
Connection
Testing
DN 15 – DN 80
PN 10-PN 16
-30° / +120°
DIN 30680
EN ISO 228-1 Threaded
EN 12266-1
Application Areas
The DEJ11 Threaded Expansion Joint is widely used across diverse industrial and commercial sectors, delivering reliable flow control and long‑lasting performance.
1. Water and Wastewater Systems
2. Chemical Industry
3. Food and Beverage Industry
4. Pharmaceutical Industry
5. Oil and Gas Industry
6. HVAC (Heating, Ventilation, Air Conditioning) Systems
In these applications, this DEJ11 Threaded Expansion Joint ensures precise fluid control, maintains excellent sealing integrity, and supports efficient, safe operation even under demanding conditions.
The DEJ11 Threaded Expansion Joint is a fundamental component specifically engineered to absorb thermal changes, minor pipe movements, and continuous mechanical vibration within non-rigid piping systems. Designed to meet the demands of modern infrastructure, this joint provides essential stress relief, ensuring structural stability, operational reliability, and long-term durability in small-scale HVAC, utility, and equipment connection environments.
At the core of the DEJ11 Threaded Expansion Joint is its highly flexible bellow element, typically constructed from rubber or stainless steel. This bellow allows for controlled axial compression and extension, accommodating volume changes caused by temperature fluctuations in the fluid or the environment. The primary function of the joint is to manage these dynamic forces, thereby preventing excessive stress transfer to sensitive components like small pumps and instruments.
Manufactured from high-strength, corrosion-resistant materials and built with robust threaded end connections, the DEJ11 Threaded Expansion Joint is designed for quick, secure integration into smaller bore piping. The reliable threaded connection drastically simplifies installation, particularly in tight spaces where welding or flanging is impractical. This ease of installation minimizes labor time and costs, making it ideal for large commercial building projects.
The DEJ11 Threaded Expansion Joint is ideally suited for applications near chillers, hot water circulation systems, boilers, and utility pipelines where thermal movement is common, and fast in-line installation is essential. Its capability to absorb subtle movement and its straightforward connection method make it a preferred choice for installers seeking a high-integrity, standards-compliant solution for long-term protection of small system integrity.
In summary, the DEJ11 Threaded Expansion Joint offers an optimal combination of effective thermal movement absorption, rapid threaded installation, and excellent vibration dampening. With its durable bellow element, simple construction, and focus on small-scale system protection, this unit stands as a trusted solution for modern fluid control and ancillary pipeline requirements worldwide.
1. General Information
The DEJ11 Threaded Expansion Joint is designed to absorb axial and lateral movement in smaller pressurized pipeline systems. Proper installation, including setting the correct initial position, is essential to guarantee safe operation, long service life, and effective stress relief.
2. Safety Precautions
Installation must be performed by qualified personnel only.
Ensure strict compliance with all local safety regulations and standards concerning working with pressurized, small-bore piping systems.
Wear appropriate personal protective equipment (PPE).
Confirm that the pipeline section is fully depressurized, drained, and cooled (if applicable) before attempting to install the DEJ11 Threaded Expansion Joint.
3. Pre-Installation Checklist
Inspect the DEJ11 Threaded Expansion Joint for any visible damage during transport or storage, paying particular attention to the bellow integrity and the condition of the pipe threads.
Check that the joint type, size, and pressure rating match the system requirements.
Verify that the joint is clean and free from debris.
Confirm that the mating pipe threads are clean, undamaged, and aligned correctly for engagement. Ensure that the pipe is properly supported adjacent to the joint.
4. Installation Procedure
Positioning: Install the DEJ11 Threaded Expansion Joint ensuring the joint is oriented correctly relative to the movement axis (usually axial). The joint must be set to the length required for initial pre-tensioning or pre-compression based on the expected ambient operating temperature.
Use the appropriate thread sealant (e.g., PTFE tape or pipe compound) suitable for the medium and operating conditions.
Align the joint precisely with the pipe end and tighten using an appropriate tool on the body flats, avoiding excessive force that could distort the bellow or damage the pipe threads. Avoid twisting the bellow during installation.
5. Post-Installation
Slowly reintroduce fluid and pressurize the system, checking immediately for leaks around the threaded connections and the bellow area. If leakage is detected, depressurize the system immediately and inspect/re-apply the thread sealant and re-tighten. Record the installation details, initial set length, and final notes for documentation purposes.
Proper maintenance extends the service life of the DEJ11 Threaded Expansion Joint and ensures reliable absorption of pipeline movement and stabilization. Follow the guidelines below to maximize the longevity of this essential unit.
1. Routine Operation
Visually inspect the DEJ11 Threaded Expansion Joint exterior regularly (e.g., monthly) for signs of leakage, misalignment, or excessive compression/extension beyond its design limits. Check for any visible cracking, blistering, or wear on the bellow material, especially in high-temperature or UV-exposed environments.
2. Inspection Schedule
Monthly, check the pipe threads adjacent to the joint for any signs of movement or loosening.
Quarterly, check the overall alignment of the joint and ensure the adjacent piping supports are still secure.
Annually, perform a detailed inspection of the bellow surface for signs of corrosion or fatigue cracking.
3. Lubrication
The DEJ11 Threaded Expansion Joint is a passive component and does not require lubrication. However, external threads (if any are exposed) should be kept clean to allow for future removal if necessary.
4. Seal and Gasket Replacement
The main sealing mechanism (bellow) must be replaced if any tears, severe thinning, or permanent deformation is found, as this compromises pressure containment. Threaded connections should be disassembled, cleaned, and resealed if persistent external leakage is observed. Always isolate the pipeline and fully depressurize the line before attempting to replace the DEJ11 Threaded Expansion Joint.
5. Cleaning
Keep the exterior of the DEJ11 Threaded Expansion Joint clean to prevent surface corrosion and to ensure the bellow convolutions are free of external debris that could impede movement. Ensure that surrounding insulation (if used) does not restrict the movement of the bellow.
6. Storage and Spare Parts
Store spare parts (gaskets, replacement bellows) in a dry, clean, and cool environment, away from direct sunlight and temperature extremes. Maintain a detailed record of all inspections, internal part replacements, and repairs performed on the DEJ11 Threaded Expansion Joint unit.
We prioritize quality at every stage of production to deliver durable, safe, and efficient products. Our continuous improvement and strict quality controls keep us at the forefront of the industry.
Our certifications prove our commitment to excellence and compliance with international standards, ensuring the safety and reliability of our products worldwide.
We continuously invest in innovation and quality to expand our certifications and meet evolving industry needs.
Frequently Asked Questions about the DEJ11?
What are the main advantages of this valve?
The DEJ11 Threaded Expansion Joint provides essential flexibility to rigid piping systems, effectively absorbing thermal expansion and mechanical vibration, which protects small, sensitive equipment from damaging axial stress and prolongs overall system lifespan.
Why should I choose this product?
This valve delivers outstanding performance in both sealing and durability, making it a dependable choice for demanding applications. Its straightforward design facilitates easy installation, offering flexibility during system design. With a wide range of material options, it meets the needs of various infrastructure projects, from municipal water networks to industrial facilities.
What types of movement does the DEJ11 Threaded Expansion Joint primarily manage?
The DEJ11 Threaded Expansion Joint is primarily designed to manage axial movement (compression and extension) caused by thermal changes and to absorb mechanical vibration originating from pumps or compressors.
Can the DEJ11 Threaded Expansion Joint be easily removed for pipeline service?
Yes. A key benefit of the threaded design is that the DEJ11 Threaded Expansion Joint can be quickly unthreaded and removed from the line using standard tools, making it highly advantageous for maintenance compared to fixed-flanged connections.
Is the DEJ11 Threaded Expansion Joint suitable for underground burial applications?
It is generally recommended that the DEJ11 Threaded Expansion Joint be installed above ground or in easily accessible areas, as movement monitoring is crucial, and the bellows material can be vulnerable to external damage or soil chemicals if directly buried.
