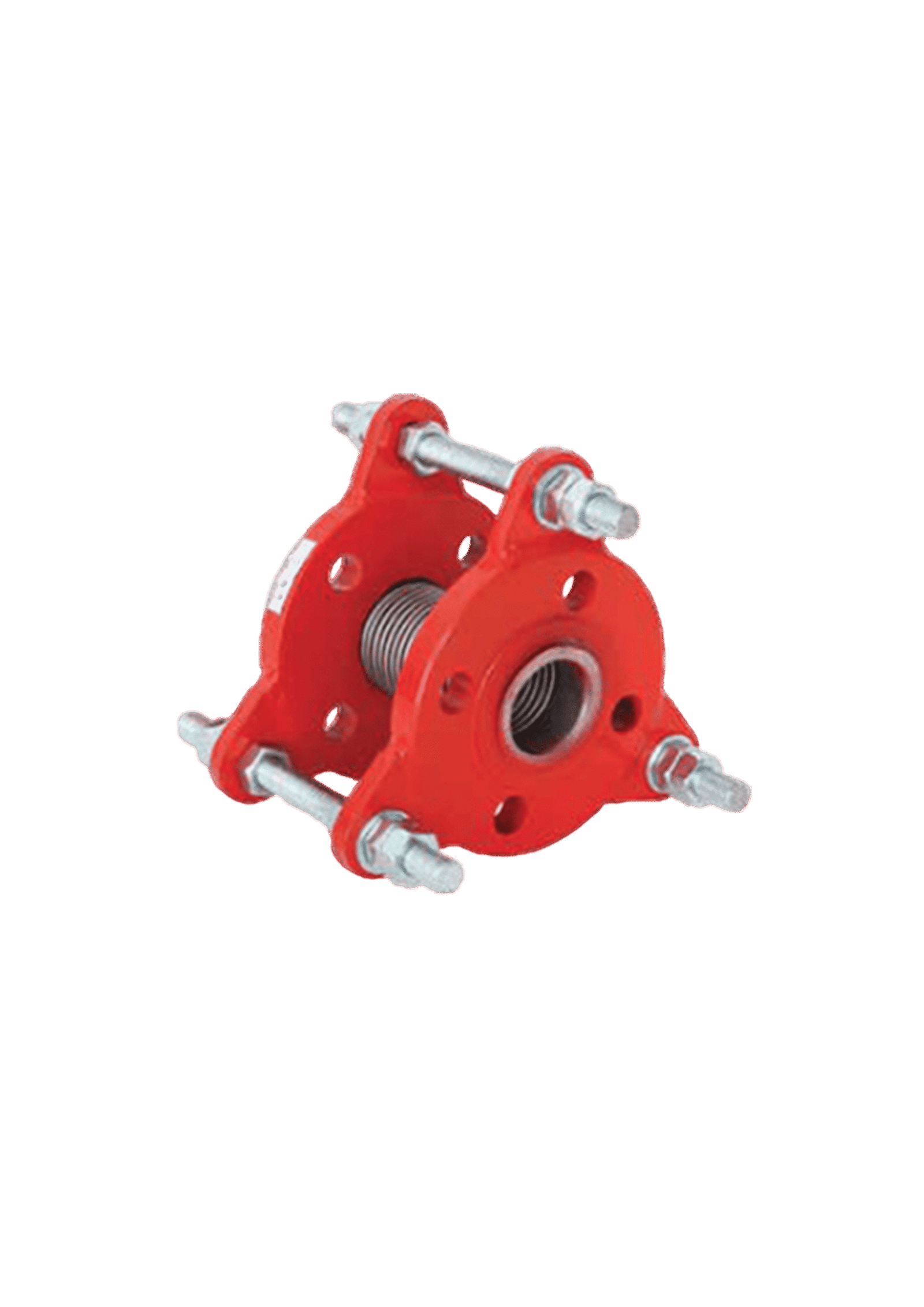

DEJ14 Vibration Expansion Joint
Devinsan offers critical pipeline isolation solutions engineered for superior dampening of kinetic energy, noise reduction, and long-term equipment protection. Designed for enduring stability and dynamic flexibility, these DEJ14 Vibration Expansion Joint units utilize a multi-layered elastomeric bellow to meet the crucial demands of modern industrial pumping and HVAC systems.
Production Standard
Nominal Dimension (DN)
Nominal Pressure (PN)
Operating Temperature
Face to Face
Connection
Coating
Testing
DN 25 – DN 300
PN 10-PN 16
-30° / +400°
DIN 30681
EN 1092-1 ISO7005-1 Flanged
Industrial Epoxy
DIN 30681
Application Areas
The DEJ14 Vibration Expansion Joint is widely used across diverse industrial and commercial sectors, delivering reliable flow control and long‑lasting performance.
1. Water and Wastewater Systems
2. Chemical Industry
3. Food and Beverage Industry
4. Pharmaceutical Industry
5. Oil and Gas Industry
6. HVAC (Heating, Ventilation, Air Conditioning) Systems
In these applications, this DEJ14 Vibration Expansion Joint ensures precise fluid control, maintains excellent sealing integrity, and supports efficient, safe operation even under demanding conditions.
The DEJ14 Vibration Expansion Joint is a specialized pipe fitting specifically engineered to isolate and absorb continuous mechanical vibration and axial/lateral movement originating from rotating equipment like pumps, compressors, and chillers. Designed to meet the stringent demands of modern infrastructure, this joint ensures the structural health of the pipeline and significantly reduces noise transmission, enhancing the operational durability of the entire system.
At the core of the DEJ14 Vibration Expansion Joint is its thick, spherically shaped elastomeric or rubber bellow element. This flexible structure effectively isolates vibrations and damps the mechanical shock that would otherwise be transmitted through rigid piping to sensitive control valves or building structures. The primary function of the joint is to act as a crucial isolation barrier, ensuring the forces generated by machinery are neutralized at the source.
Manufactured from high-strength synthetic fibers and built with robust, integrated flanges, the DEJ14 Vibration Expansion Joint is designed to withstand continuous system pressure and varying temperature ranges common in industrial processes. The rubber bellow construction provides inherent corrosion resistance and the capability to absorb significant three-dimensional movement (axial, lateral, angular) without inducing undue stress on the connecting pipe flanges.
The DEJ14 Vibration Expansion Joint is ideally suited for applications immediately adjacent to all types of rotating machinery in HVAC, power generation, chemical, and water treatment plants, where noise mitigation and the protection of pipe supports from dynamic forces are essential. Its superior dampening capacity and maintenance-free design make it a preferred choice for engineers seeking a high-integrity, standards-compliant solution for long-term acoustic and mechanical system stabilization.
In summary, the DEJ14 Vibration Expansion Joint offers an optimal combination of effective noise reduction, comprehensive vibration isolation, and superior structural protection. With its durable elastomeric bellow, robust construction, and wide movement capability, this unit stands as a trusted solution for modern fluid control and equipment stabilization requirements worldwide.
1. General Information
The DEJ14 Vibration Expansion Joint is designed to isolate dynamic movement and vibration from rotating equipment. Proper installation, with careful attention to alignment and bolt torque, is essential to guarantee safe operation, long service life, and effective dampening performance.
2. Safety Precautions
Installation must be performed by qualified personnel only.
Ensure strict compliance with all local safety regulations and standards concerning working with pressurized pipelines near rotating machinery.
Wear appropriate personal protective equipment (PPE).
Confirm that the pump or connected equipment is electrically locked out and the pipeline section is fully depressurized before attempting to install the DEJ14 Vibration Expansion Joint.
3. Pre-Installation Checklist
Inspect the DEJ14 Vibration Expansion Joint for any visible damage during transport or storage, paying particular attention to the rubber bellow surface and flange face integrity.
Check that the joint type, size, and pressure rating match the system requirements and the frequency of vibration expected.
Verify that the joint is clean and free from debris.
Confirm that the mating pipe flanges are properly aligned (parallel and concentric) and that the joint is not subject to twisting or excessive pull during bolting. Ensure that the pipe supports adjacent to the joint are securely fixed.
4. Installation Procedure
Positioning: Install the DEJ14 Vibration Expansion Joint as close as possible to the source of the vibration (e.g., pump discharge). The joint should be installed at its neutral length to maximize its ability to absorb both compression and extension.
Use the appropriate gaskets; the elastomeric joint often includes integral rubber sealing faces, requiring no separate gasket.
Align the joint precisely between the pipeline flanges and insert bolts, tightening them gradually and crosswise in incremental steps. Do not exceed the specified bolt torque to prevent damage to the joint’s integral sealing face.
5. Post-Installation
Slowly pressurize the system and activate the connected machinery, checking immediately for leaks around the flange connections. If leakage is detected, depressurize the system immediately and re-tighten the bolts following the cross-pattern sequence. Visually confirm the joint is absorbing movement without over-extension or excessive distortion once the machinery is running. Record the installation details, date, and final bolt torques for documentation purposes.
Proper maintenance extends the service life of the DEJ14 Vibration Expansion Joint and ensures reliable vibration dampening and structural protection. Follow the guidelines below to maximize the longevity of this essential unit.
1. Routine Operation
Visually inspect the DEJ14 Vibration Expansion Joint exterior regularly (e.g., monthly) for signs of leakage, abrasion, or chemical attack on the rubber bellow. Check for any visible cracking, stiffening, or distortion on the bellow material, which indicates a loss of flexibility.
2. Inspection Schedule
Monthly, check the pipe flanges and hardware for signs of loosening caused by continuous vibration.
Quarterly, measure the installed length and alignment of the joint to ensure it is not operating beyond its maximum designed extension or compression limits.
Annually, perform a detailed inspection of the bellow surface for signs of fatigue damage or pitting.
3. Lubrication
The DEJ14 Vibration Expansion Joint is a passive elastomeric component and does not require lubrication. Keep the external flange bolts clean and free of abrasive media.
4. Seal and Gasket Replacement
Replace the flange gaskets immediately if persistent external leakage is observed. The bellow element must be replaced if any cracks, tears, or permanent set (deformation) are found on the rubber bellow, as its pressure integrity is compromised. Always isolate the pipeline and fully depressurize the line before attempting to replace the joint.
5. Cleaning
Keep the exterior of the DEJ14 Vibration Expansion Joint clean to prevent surface corrosion, ensuring no foreign materials (especially chemicals or oil spills) accumulate on the elastomeric surface, as this can degrade the material. Ensure the area around the joint is clear to allow free movement.
6. Storage and Spare Parts
Store spare parts (gaskets, replacement joints) in a dry, cool environment, away from direct sunlight, ozone, and excessive heat, which can degrade rubber compounds. Maintain a detailed record of all inspections, internal part replacements, and repairs performed on the DEJ14 Vibration Expansion Joint unit.
We prioritize quality at every stage of production to deliver durable, safe, and efficient products. Our continuous improvement and strict quality controls keep us at the forefront of the industry.
Our certifications prove our commitment to excellence and compliance with international standards, ensuring the safety and reliability of our products worldwide.
We continuously invest in innovation and quality to expand our certifications and meet evolving industry needs.
Frequently Asked Questions about the DEJ14?
What are the main advantages of this valve?
The DEJ14 Vibration Expansion Joint provides essential multi-axis movement absorption, crucial for isolating vibrations from equipment and significantly reducing the transmission of structure-borne noise throughout the entire piping system.
Why should I choose this product?
This valve delivers outstanding performance in both sealing and durability, making it a dependable choice for demanding applications. Its straightforward design facilitates easy installation, offering flexibility during system design. With a wide range of material options, it meets the needs of various infrastructure projects, from municipal water networks to industrial facilities.
What is the purpose of the DEJ14 Vibration Expansion Joint?
The DEJ14 Vibration Expansion Joint is designed to absorb vibration, reduce noise, and protect pipeline systems by minimizing stress caused by pumps, machinery, and pressure fluctuations.
Where is the DEJ14 Vibration Expansion Joint typically used?
It is commonly used in water supply systems, HVAC installations, industrial pipelines, pump stations, and applications where vibration isolation and flexibility are required.
What materials are used in the DEJ14 for durability and performance?
The DEJ14 is manufactured with high-quality elastomers and reinforced flanges that ensure excellent vibration absorption, corrosion resistance, and long-term reliability in demanding operating conditions.
